Metal 3D Printing Service
Aluminum(AlSi10Mg), Stainless Steel 316L, 17-4PH, Titanium(Ti64), Maraging Steel, Inocel 718, Copper, Co_Cr
All uploads are secure and confidential!

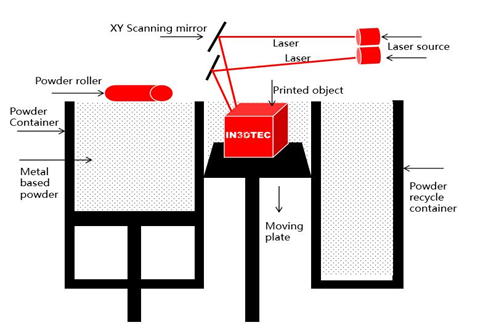

How does metal 3D printing works?
The 3D Printer begins sintering each layer-first the support structures to the base plate, then the part itself, with a laser aimed onto a bed of metallic powder.
After a cross-section layer or powder is micro-welded, the build plate shifts down and a recoater blade moves across the platform to deposit the next layer of powder into an inert build chamber.
The process is repeated layer by layer until the part is complete.
Metal 3D Printing Process
- Prepare the CAD model
- Slicing
- Printing
- Clean the powder
- Cut the parts off from the plate
- Remove the support
- Sandblasting, bead blasting, polishing, powder coating…
Our Metal 3D Printers
Printer Brand: EOS (SLM)
Printing Volume: 300x300x400
Printer Brand: Farsoon
Printing Volume: 500x500x500mm
Layer thickness: 0.04mm
What is direct metal laser sintering( DMLS)?
Direct metal laser sintering (DMLS) is an industrial metal 3D printing process that builds fully functional metal prototypes and production parts in 4 days or less.
It builds the metal parts from a CAD file using a laser selectively fusing a fine metal powder.
A DMLS machine can produce highly complex features and all-in-one assemblies using metal materials that would be difficult to achieve with subtractive manufacturing techniques.
DMLS provides a fast way to produce metals such as aluminum, stainless steel, and titanium strong end-use parts.
metal 3D Printing Materials
Key benefits
It offers good strength, hardness and dynamic properties, and is therefore also used for parts subjects to high loads.
Ideal applications
-General-purpose applications
-Aerospace
-Automotive
-Transportation
-Consumer products
-Applications that require a combination of good thermal properties and low weight
Key benefits
This kind of stainless steel is characterized by having good corrosion resistance and evidence that there are no leachable substances in cytotoxic concentrations.
Ideal applications
-Lifestyle/Consumer, e.g. watches, jewelry, spectacle frames, decorations
-Automotive/Industrial, e.g. non-corroding common material, food, and chemical plants
-Aerospace/Turbine industry
Key benefits
17-4PH is characterized by having high yeild strength and being easily heat-treatable to obtain excellent hardness and strength.
Ideal applications
-Lifestyle/Consumer, e.g. watches, jewelry, spectacle frames, decorations
-Automotive/Industrial, e.g. non-corroding common material, food, and chemical plants
Key benefits
MS1 is characterized by having good mechanical properties and being easily heat-treatable to obtain excellent hardness and strength
Ideal applications
-Lifestyle/Consumer, e.g. watches, jewelry, spectacle frames, decorations
-Automotive/Industrial, e.g. non-corroding common material, food, and chemical plants
Key benefits
Ti64 has a chemical composition corresponding to ASTM F1472 and ASTM F2924. It is a well-known light alloy, characterized by having excellent mechanical properties and corrosion resistance combined with a low specific weight
Ideal applications
– General-purpose applications
-Medical
-Aerospace
-Transportation
-Industries need high mechanical properties and chemical resistance
Key Benefits
High corrosion resistance, high-temperature resistance, and high electrical resistance.
Ideal Applications
Gas turbines for both aerospace and energy industries, process industry, oil and gas, ship building.
Key Benefits
High carbon CoCrMo based superalloy, good corrosion, wear resistance, and good mechanical properties
Ideal Applications
Orthopedic implants
Gas turbines
Engine components
Jewelry
Key Benefits
Excellent thermal and electrical conductivity
Ideal Applications
Inductors, electrical motors, and many other applications.
| Material Name | Properties | Surface Finishes | Cost | Yield Srength (Mpa) | Tensile Strength (Mpa) | Elongation after Fracture (%) |
|---|---|---|---|---|---|---|
| Aluminum(AlSi10Mg) | Lightweight | Polishing, Sandblast, Glass Bead Blasting, Anodizing, Painting, Professional Annealing, Thread Tapping, Deburring... | $ | 300 | 450 | 4 |
| Copper | High electrical & thermal conductivity. | As printed | $$ | 270 | 400 | 8 |
| Stainless Steel (316L) | High Strength, Functional | Polishing, Sandblasting, Glass Bead Blasting, Painting, Professional Annealing, Thread Tapping, Deburring... | $ | 550 | 600 | 34 |
| Maraging Steel | High Strength, High Heat Resistance, Industrial | Polishing, Sandblasting, Glass Bead Blasting, Anodizing, Painting, Professional Annealing, Thread Tapping, Deburring... | $$ | 1150 | 1250 | 14 |
| Titanium | Stong, Light weight, Medical | Polishing, Sandblasting, Glass Bead Blasting, Anodizing, Painting, Professional Annealing, Thread Tapping, Deburring... | $$$ | 1000 | 1050 | 10 |
| Nickel Alloy | High Temperature resistance | Polishing, Sandblasting, Glass Bead Blasting, Painting, Professional Annealing, Thread Tapping, Deburring... | $$$ | 1050 | 1170 | 8 |
| Cobalt Chrome ( Co_Cr） | Good Corrosion, wear resistance | Polish, Sandblasting, Deburring | $$ | 1040 | 1340 | 11 |
| 17-4PH Steel | High Strength, corrosion resistance | Polishing, Sandblasting, Glass Bead Blasting, Painting, Professional Annealing, Thread Tapping, Deburring... | $$ | 1235 | 1340 | 13 |

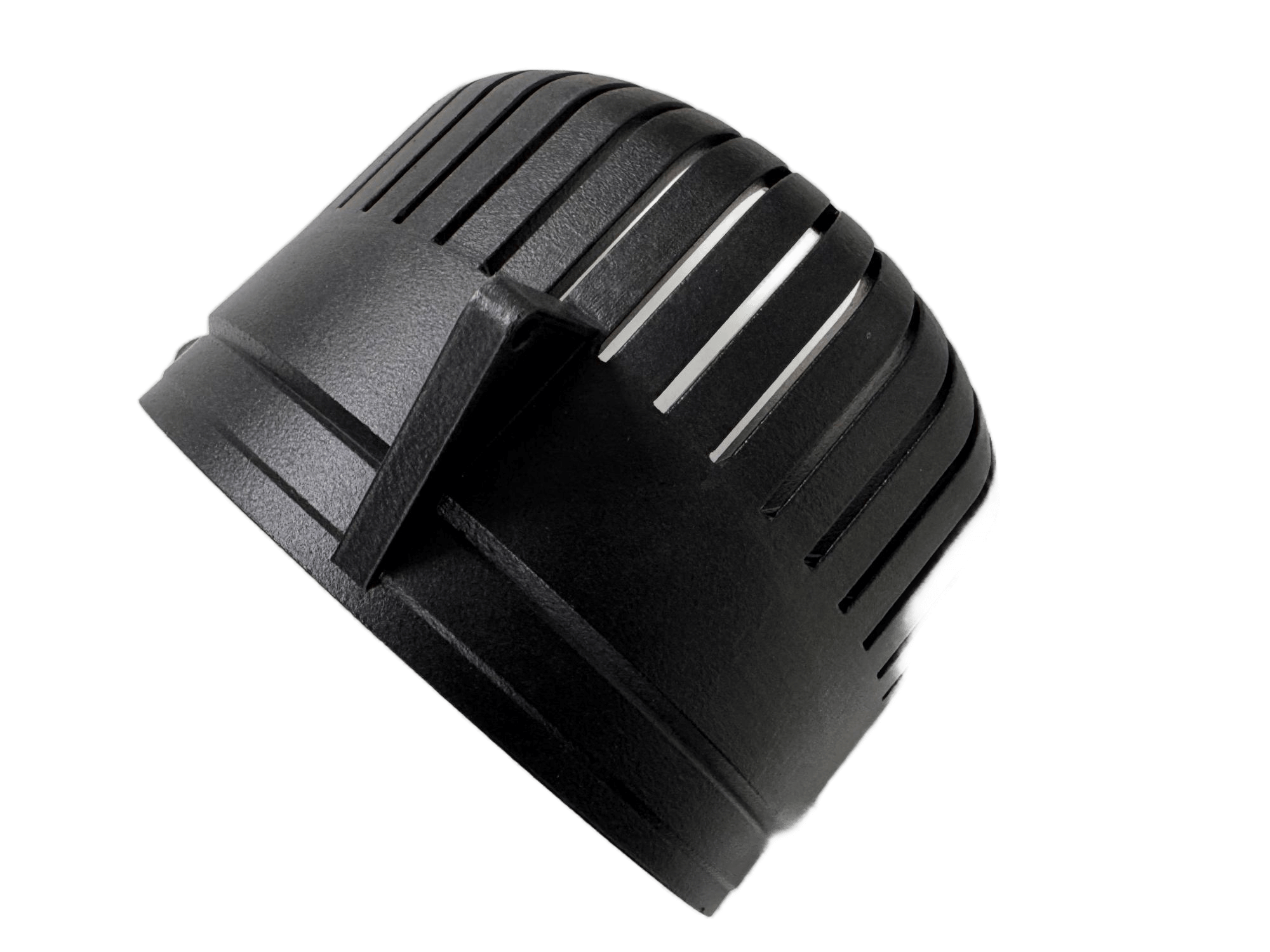

Sandblasting results in an uniform and clean surface

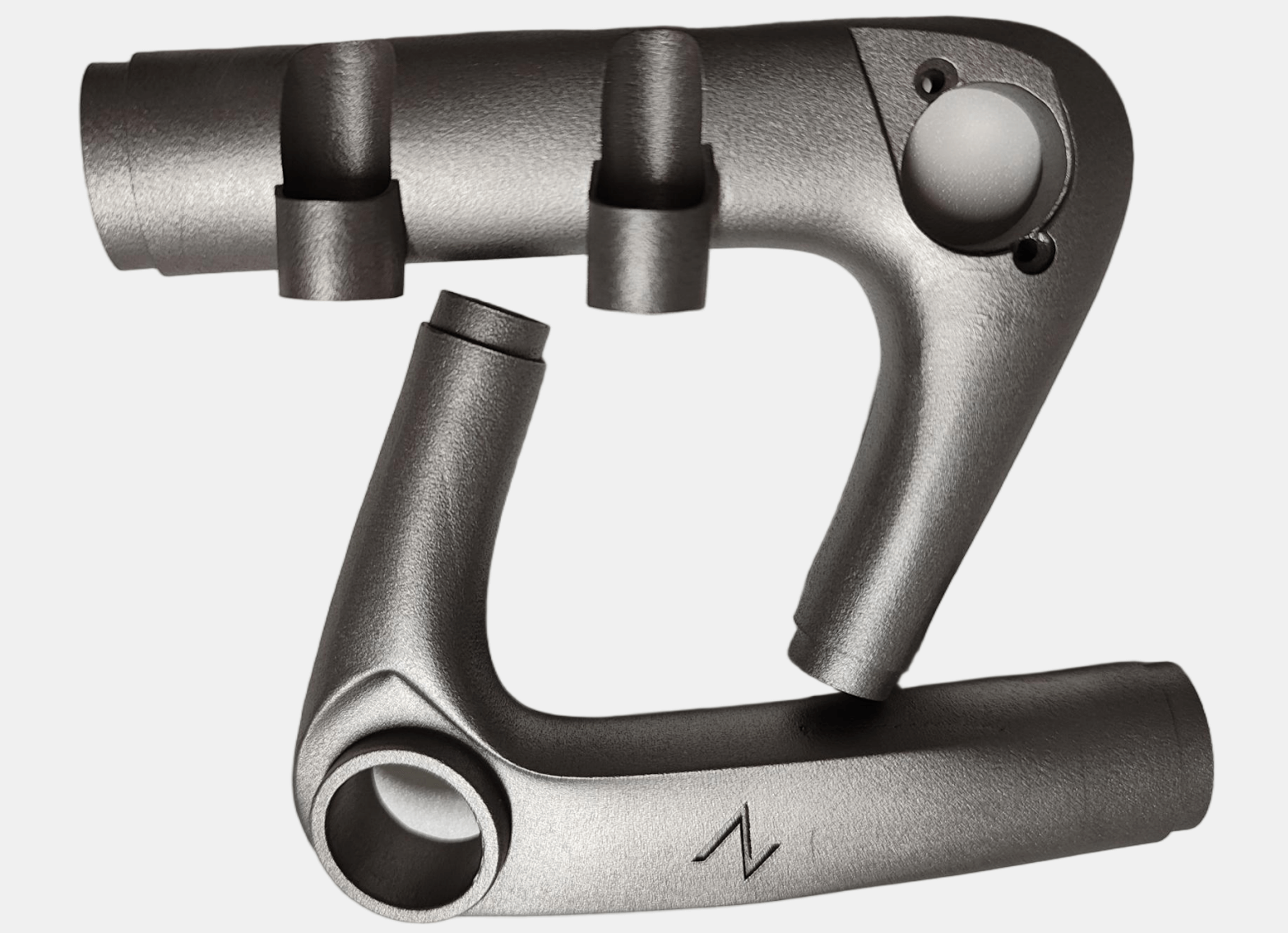

Glass blasted results in a satin glossy finish

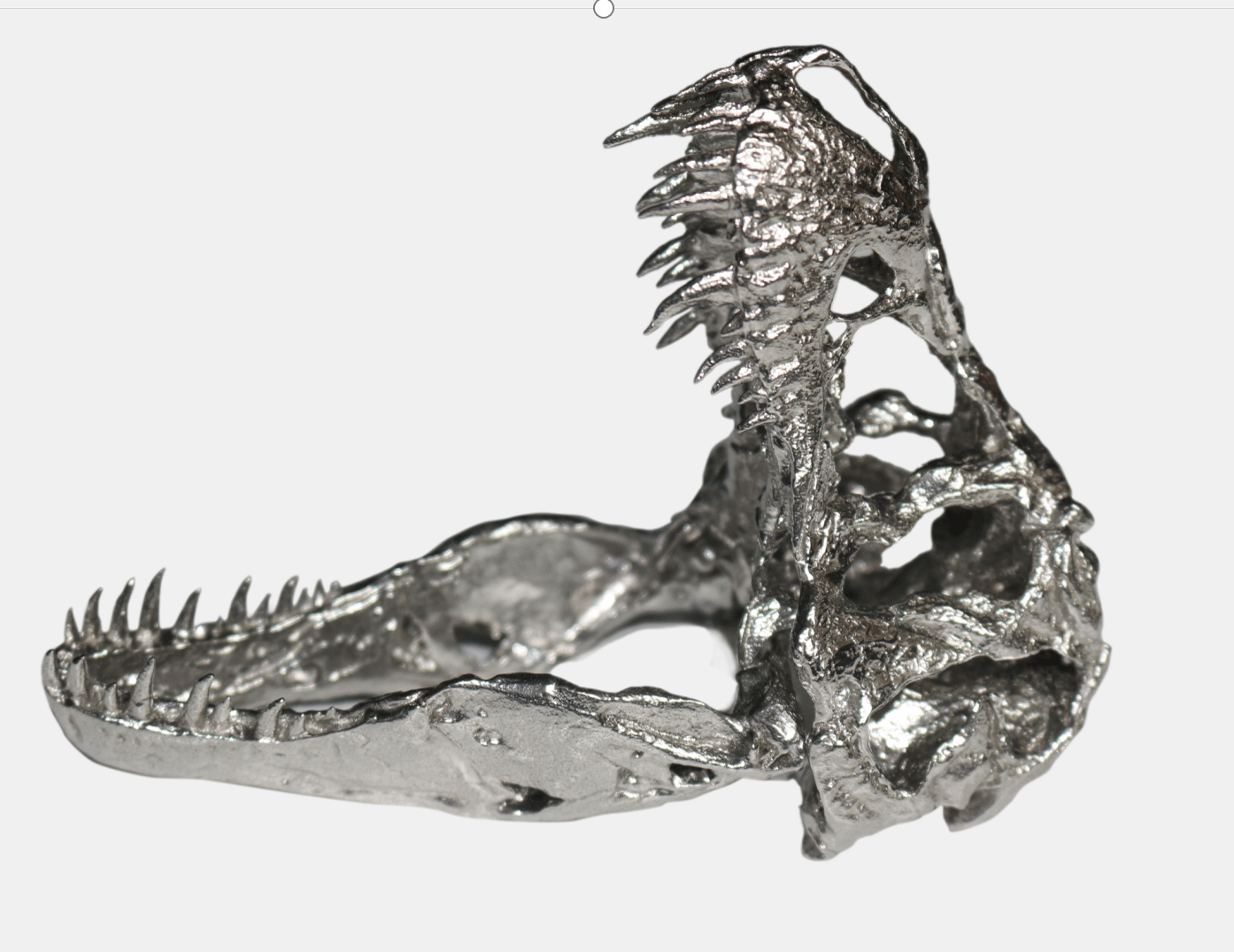

Mirror-like polishing, improve the smoothness

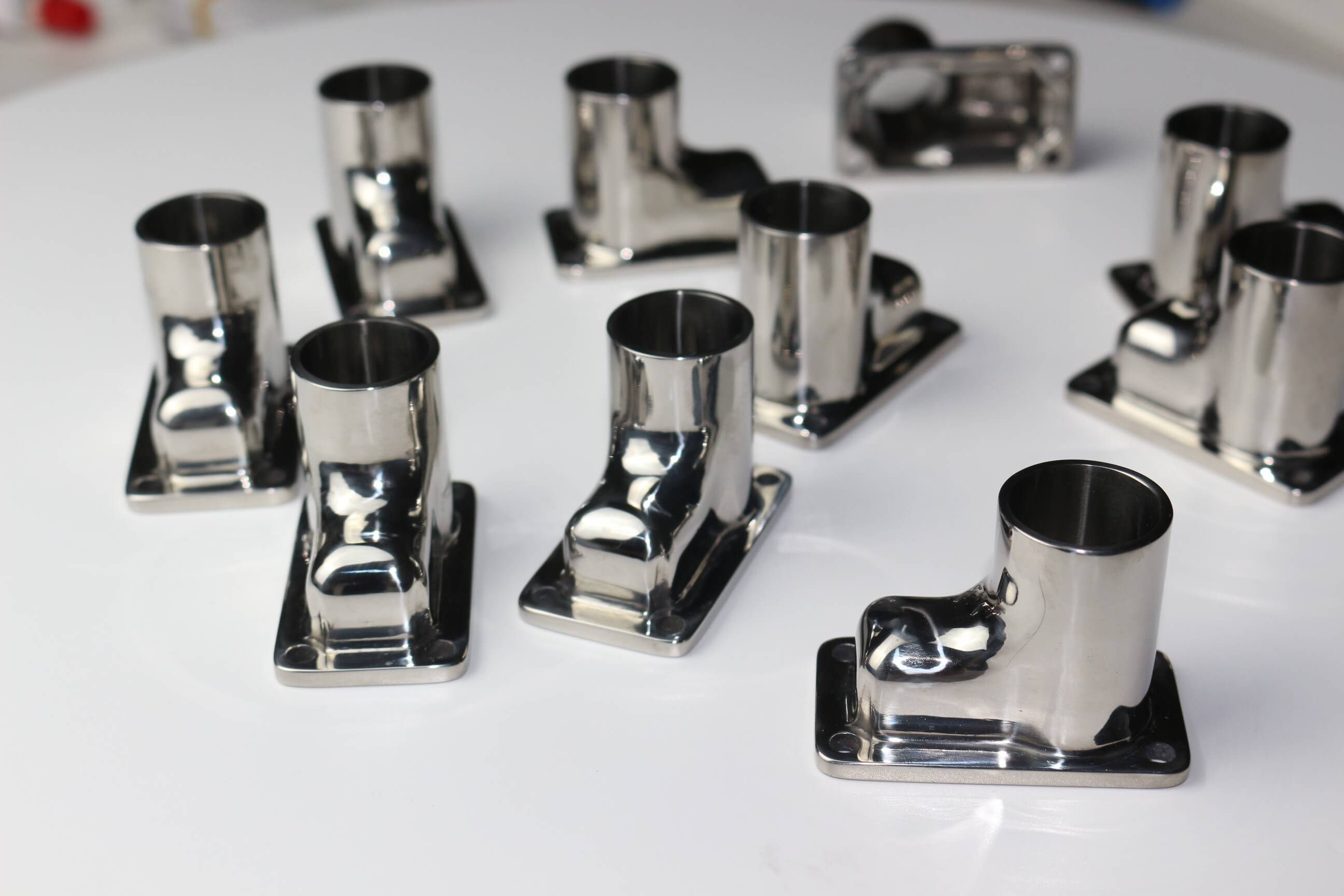

Shinny Polishing, makes parts more shinny.
Metal 3D Printing Design Guide
0.5mm
1.0mm
Minimum M2, CNC thread after printing is recommened
0.15mm on each side
Why choose IN3DTEC for making your metal parts
Able for making complex geometry
8+ years in metal 3d printing service. We produce millions of metal prints and have enriched experience in making complex parts.
Professional Team Service
More than making parts. We provide values. Our designers and machinist will assist our customers through all the workflow.
Rapid Turnaround
We have more than 30 units of industrial metal 3d printers which can make your parts within 4 days.
Save Your Money
We control the cost in every process to help you save money on metal prints.
